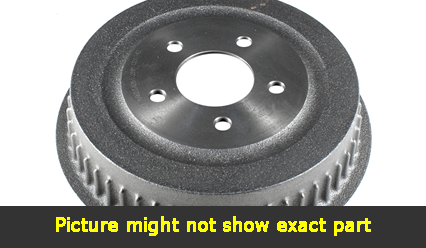

Click to EnlargeBrake Drum
$37.03 each
Raybestos: 9780
Product Number: BD35117
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 4 |
| Bolt Hole Diameter (mm): | 14.60 |
| Outside Diameter (mm): | 252.00 |
| Outside Diameter (in): | 9.92 |
| Inside Diameter (mm): | 200.00 |
| Inside Diameter (in): | 7.87 |
| Center Hole Diameter (mm): | 55.00 |
| Center Hole Diameter (in): | 2.17 |
| Product Depth (mm): | 48.50 |
| Product Depth (in): | 1.91 |
| Product Height (mm): | 53.20 |
| Product Height (in): | 2.09 |
| Nominal Thickness (mm): | 200.00 |
| Nominal Thickness (in): | 7.87 |
| Discard Thickness (mm): | 201.00 |
| Discard Thickness (in): | 7.91 |
| Maximum Drum Discard Diameter (mm): | 201.00 |
| Mounting Bolt Circle Diameter(mm): | 100.00 |
| Actual Weight (KG): | 4.400 |
| Actual Weight (lbs): | 9.7 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
