Click to EnlargeBrake Drum
$45.56 each
Raybestos: 9773
OE Number: 58411FD100
Product Number: BD35112
PRODUCT DESCRIPTION
Position: Rear Brake Drum

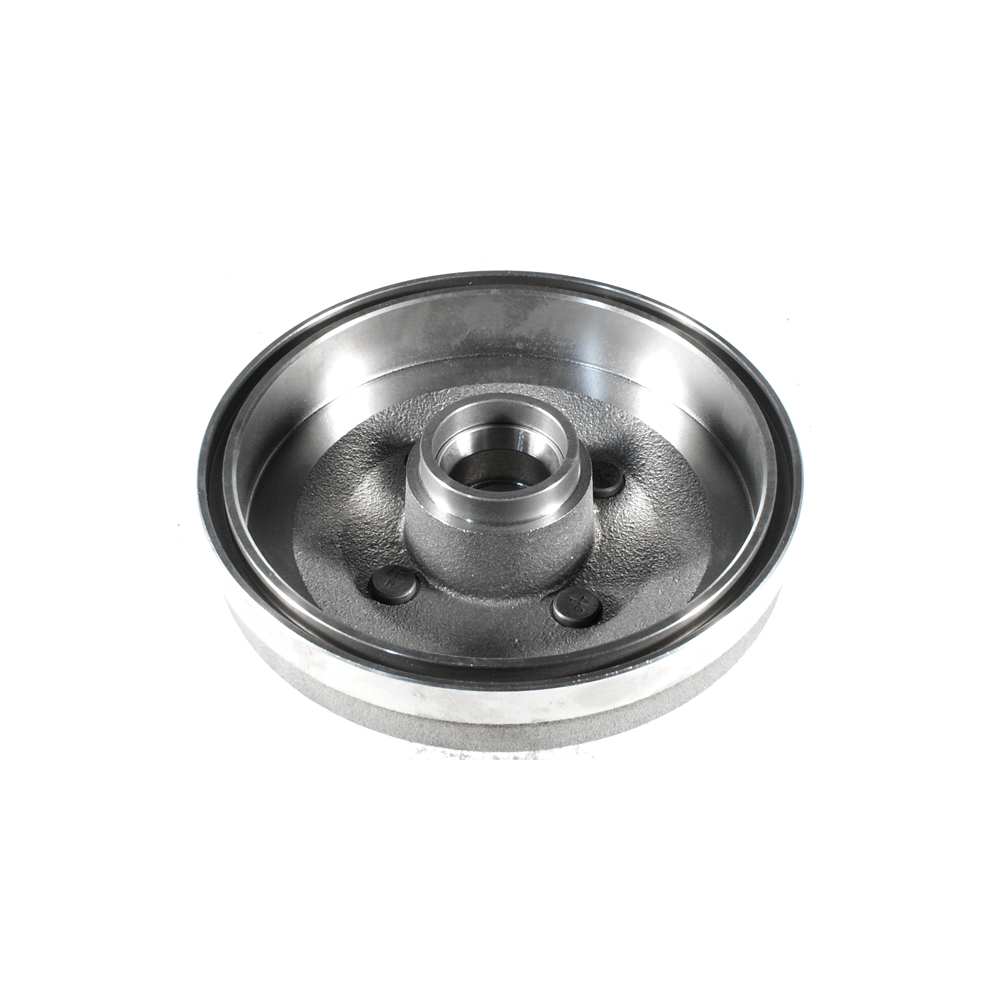

Brake Drum
w/o ABS
| Part Label: | Brake Drum |
| Bolt Holes: | 4 |
| Bolt Hole Diameter (mm): | 12.27 |
| Outside Diameter (mm): | 230.40 |
| Outside Diameter (in): | 9.07 |
| Inside Diameter (mm): | 200.00 |
| Inside Diameter (in): | 7.87 |
| Center Hole Diameter (mm): | 53.90 |
| Center Hole Diameter (in): | 2.12 |
| Product Depth (mm): | 33.60 |
| Product Depth (in): | 1.32 |
| Product Height (mm): | 81.10 |
| Product Height (in): | 3.19 |
| Nominal Thickness (mm): | 200.00 |
| Nominal Thickness (in): | 7.87 |
| Discard Thickness (mm): | 201.50 |
| Discard Thickness (in): | 7.93 |
| Maximum Drum Diameter(mm): | 201.50 |
| Maximum Drum Discard Diameter (mm): | 201.50 |
| Actual Weight (KG): | 5.500 |
| Actual Weight (lbs): | 12.12 |
| Part Description: | Brake Drum |
| F/R: | Rear |
