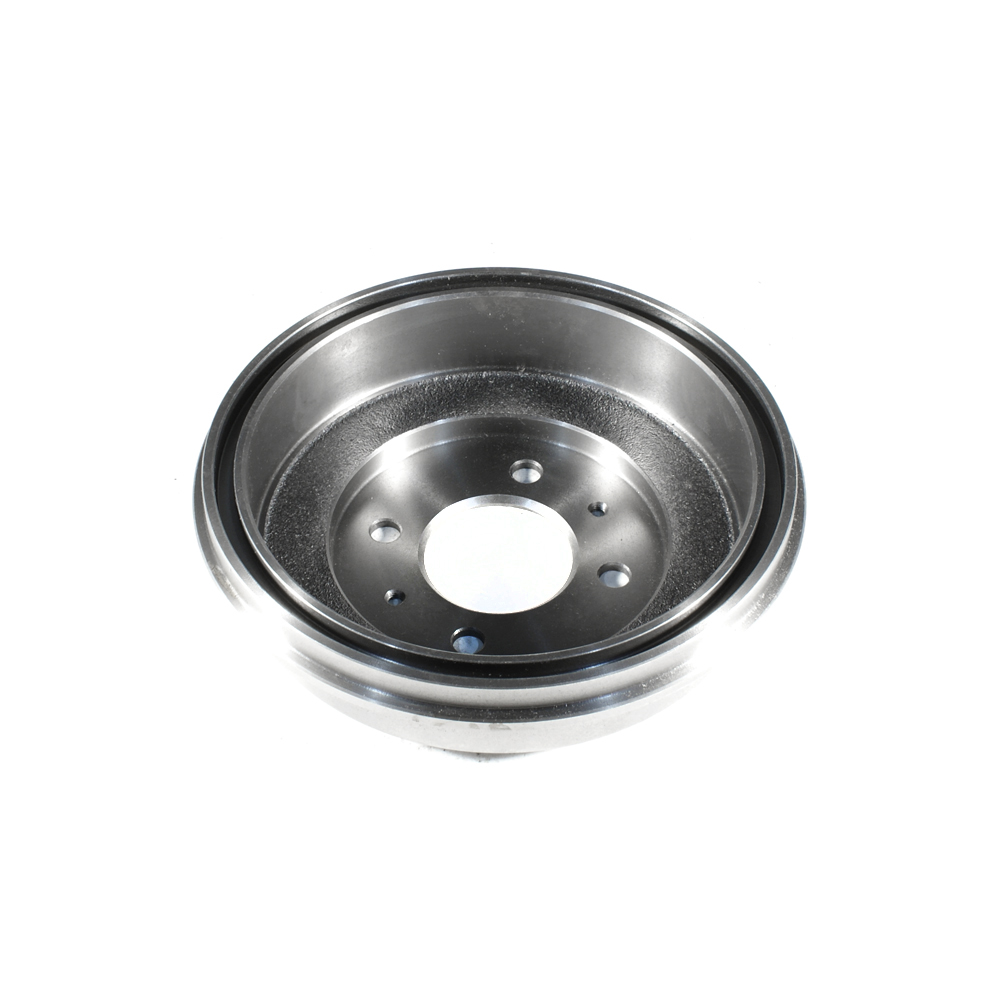

Click to EnlargeBrake Drum
$31.84 each
Raybestos: 9748
OE Number: 5841125201
Product Number: BD35102
PRODUCT DESCRIPTION
Position: Rear Brake Drum
Brake Drum
| Part Label: | Brake Drum |
| Bolt Holes: | 4 |
| Bolt Hole Diameter (mm): | 12.80 |
| Outside Diameter (mm): | 249.00 |
| Outside Diameter (in): | 9.80 |
| Inside Diameter (mm): | 203.20 |
| Inside Diameter (in): | 8.00 |
| Center Hole Diameter (mm): | 62.50 |
| Center Hole Diameter (in): | 2.46 |
| Product Depth (mm): | 58.90 |
| Product Depth (in): | 2.32 |
| Product Height (mm): | 64.00 |
| Product Height (in): | 2.52 |
| Maximum Drum Discard Diameter (mm): | 205.20 |
| Mounting Bolt Circle Diameter(mm): | 100.00 |
| Actual Weight (KG): | 4.420 |
| Actual Weight (lbs): | 9.74 |
| Part Description: | Brake Drum |
| F/R: | Rear |
