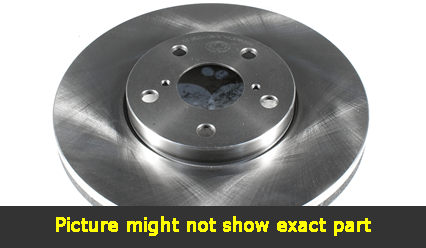

Click to EnlargeOEM Replacement Brake Rotor
$36.76 each
Raybestos: 66438
OE Number: F4TZ1102A
Product Number: BR54020
PRODUCT DESCRIPTION
Position: Front OEM Replacement Brake Rotor
Brake Rotor
Car Specs:
Drive Type: 4WD;
| Part Label: | Brake Rotor |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 17.20 |
| Outside Diameter (mm): | 297.60 |
| Outside Diameter (in): | 11.72 |
| Inside Diameter (mm): | 190.00 |
| Inside Diameter (in): | 7.48 |
| Center Hole Diameter (mm): | 98.60 |
| Center Hole Diameter (in): | 3.88 |
| Product Height (mm): | 64.80 |
| Product Height (in): | 2.55 |
| Nominal Thickness (mm): | 26.00 |
| Nominal Thickness (in): | 1.02 |
| Discard Thickness (mm): | 24.40 |
| Discard Thickness (in): | 0.96 |
| Mounting Bolt Circle Diameter(mm): | 139.70 |
| Mounting Bolt Hole Circle Diameter (in): | 5.50 |
| Actual Weight (KG): | 7.640 |
| Actual Weight (lbs): | 16.84 |
| Part Description: | Brake Rotor |
| F/R: | Front |
