Click to EnlargeBrake Drum
$35.37 each
Raybestos: 9731
OE Number: 4243106100
Product Number: BD35091
PRODUCT DESCRIPTION

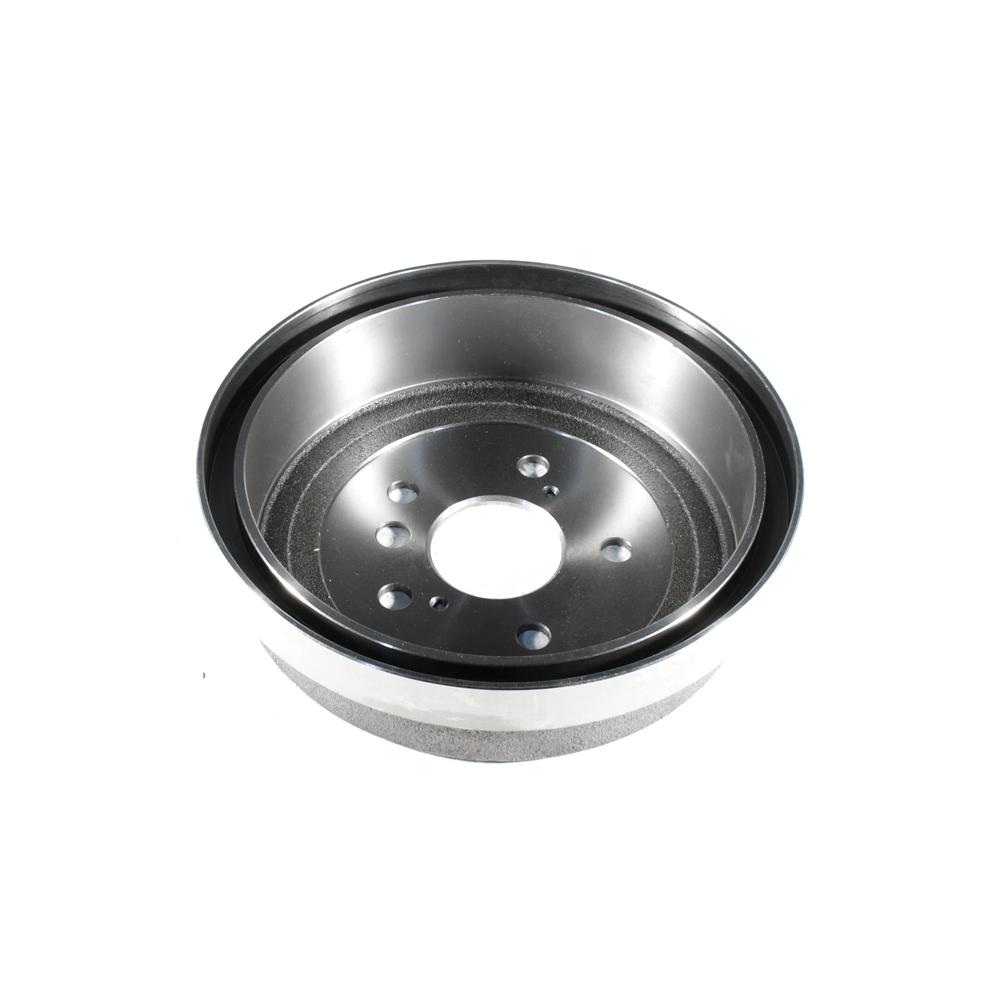

Position: Rear Brake Drum
Brake Drum
North American Made
| Part Label: | Brake Drum |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 14.70 |
| Outside Diameter (mm): | 272.00 |
| Outside Diameter (in): | 10.71 |
| Inside Diameter (mm): | 228.50 |
| Inside Diameter (in): | 9.00 |
| Center Hole Diameter (mm): | 62.20 |
| Center Hole Diameter (in): | 2.45 |
| Product Depth (mm): | 66.30 |
| Product Depth (in): | 2.61 |
| Product Height (mm): | 71.00 |
| Product Height (in): | 2.80 |
| Maximum Drum Discard Diameter (mm): | 230.60 |
| Mounting Bolt Circle Diameter(mm): | 114.30 |
| Actual Weight (KG): | 5.000 |
| Actual Weight (lbs): | 11.02 |
| Part Description: | Brake Drum |
| F/R: | Rear |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
