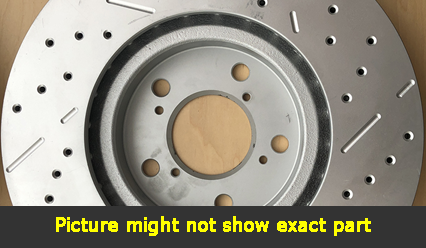

Click to EnlargeDrilled, Slotted and Coated Brake Rotor
$76.93 each
Raybestos: 680999
OE Number: CV6Z2C026B
Product Number: SP54193R
PRODUCT DESCRIPTION
Position: Rear; Right Drilled, Slotted and Coated Brake Rotor
Brake Rotor
280mm
| Part Label: | Brake Rotor |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 13.70 |
| Outside Diameter (mm): | 279.80 |
| Outside Diameter (in): | 11.02 |
| Inside Diameter (mm): | 147.80 |
| Inside Diameter (in): | 5.82 |
| Center Hole Diameter (mm): | 63.50 |
| Center Hole Diameter (in): | 2.50 |
| Product Height (mm): | 50.80 |
| Product Height (in): | 2.00 |
| Nominal Thickness (mm): | 11.00 |
| Nominal Thickness (in): | 0.43 |
| Discard Thickness (mm): | 9.00 |
| Discard Thickness (in): | 0.35 |
| Actual Weight (KG): | 4.650 |
| Actual Weight (lbs): | 10.25 |
| Part Description: | Super Plus Brake Rotor (Coated, drilled and slotted) |
| F/R: | Rear Right |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
