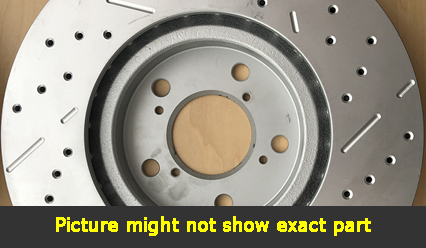

Click to EnlargeDrilled, Slotted and Coated Brake Rotor
$112.64 each
Raybestos: 680688
OE Number: 8A8Z1125A
Product Number: SP54166L
PRODUCT DESCRIPTION
Position: Front; Left Drilled, Slotted and Coated Brake Rotor
Brake Rotor
| Part Label: | Brake Rotor |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 14.30 |
| Outside Diameter (mm): | 325.00 |
| Outside Diameter (in): | 12.80 |
| Inside Diameter (mm): | 204.00 |
| Inside Diameter (in): | 8.03 |
| Center Hole Diameter (mm): | 68.00 |
| Center Hole Diameter (in): | 2.68 |
| Product Height (mm): | 47.10 |
| Product Height (in): | 1.85 |
| Nominal Thickness (mm): | 30.00 |
| Nominal Thickness (in): | 1.18 |
| Discard Thickness (mm): | 28.50 |
| Discard Thickness (in): | 1.12 |
| Actual Weight (KG): | 10.520 |
| Actual Weight (lbs): | 23.19 |
| Part Description: | Super Plus Brake Rotor (Coated, drilled and slotted) |
| F/R: | Front Left |
