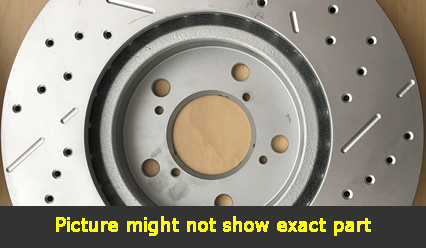

Click to EnlargeDrilled, Slotted and Coated Brake Rotor
$109.48 each
Raybestos: 680545
Product Number: SP54155R
PRODUCT DESCRIPTION
Position: Front; Right Drilled, Slotted and Coated Brake Rotor
Brake Rotor
296mm
| Part Label: | Brake Rotor |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 14.10 |
| Outside Diameter (mm): | 296.00 |
| Outside Diameter (in): | 11.65 |
| Inside Diameter (mm): | 179.60 |
| Inside Diameter (in): | 7.07 |
| Center Hole Diameter (mm): | 72.00 |
| Center Hole Diameter (in): | 2.83 |
| Product Height (mm): | 48.30 |
| Product Height (in): | 1.90 |
| Nominal Thickness (mm): | 28.00 |
| Nominal Thickness (in): | 1.10 |
| Discard Thickness (mm): | 26.00 |
| Discard Thickness (in): | 1.02 |
| Mounting Bolt Circle Diameter(mm): | 114.30 |
| Mounting Bolt Hole Circle Diameter (in): | 4.50 |
| Actual Weight (KG): | 10.520 |
| Actual Weight (lbs): | 23.19 |
| Part Description: | Super Plus Brake Rotor (Coated, drilled and slotted) |
| F/R: | Front Right |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
