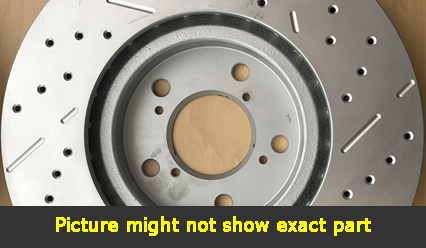

Click to EnlargeDrilled, Slotted and Coated Brake Rotor
$217.33 each
Raybestos: 66529
OE Number: F5UZ1102B
Product Number: SP54033R
PRODUCT DESCRIPTION
Position: Front; Right Drilled, Slotted and Coated Brake Rotor
Brake Rotor
Dual Rear Wheels With Hub
| Part Label: | Brake Rotor |
| Bolt Holes: | 8 |
| Bolt Hole Diameter (mm): | 16.00 |
| Outside Diameter (mm): | 331.00 |
| Outside Diameter (in): | 13.03 |
| Inside Diameter (mm): | 230.00 |
| Inside Diameter (in): | 9.06 |
| Center Hole Diameter (mm): | 123.70 |
| Center Hole Diameter (in): | 4.87 |
| Product Height (mm): | 200.70 |
| Product Height (in): | 7.90 |
| Nominal Thickness (mm): | 30.00 |
| Nominal Thickness (in): | 1.18 |
| Discard Thickness (mm): | 28.00 |
| Discard Thickness (in): | 1.10 |
| Mounting Bolt Circle Diameter(mm): | 165.10 |
| Mounting Bolt Hole Circle Diameter (in): | 6.50 |
| Actual Weight (KG): | 10.520 |
| Actual Weight (lbs): | 23.19 |
| Part Description: | Super Plus Brake Rotor (Coated, drilled and slotted) |
| F/R: | Front Right |
