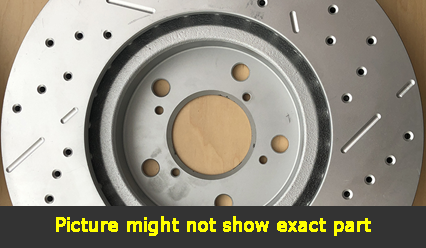

Click to EnlargeDrilled, Slotted and Coated Brake Rotor
$75.26 each
Raybestos: 96477
OE Number: TY013325X
Product Number: SP31151L
PRODUCT DESCRIPTION
Position: Front; Left Drilled, Slotted and Coated Brake Rotor
Brake Rotor
| Part Label: | Brake Rotor |
| Bolt Holes: | 5 |
| Bolt Hole Diameter (mm): | 13.00 |
| Outside Diameter (mm): | 274.00 |
| Outside Diameter (in): | 10.79 |
| Inside Diameter (mm): | 166.50 |
| Inside Diameter (in): | 6.56 |
| Center Hole Diameter (mm): | 72.10 |
| Center Hole Diameter (in): | 2.84 |
| Product Height (mm): | 50.80 |
| Product Height (in): | 2.00 |
| Nominal Thickness (mm): | 28.00 |
| Nominal Thickness (in): | 1.10 |
| Discard Thickness (mm): | 26.00 |
| Discard Thickness (in): | 1.02 |
| Actual Weight (KG): | 10.520 |
| Actual Weight (lbs): | 23.19 |
| Part Description: | Super Plus Brake Rotor (Coated, drilled and slotted) |
| F/R: | Front Left |
This product fits the following vehicles: Does not fit your vehicle? Click here to find parts for you
