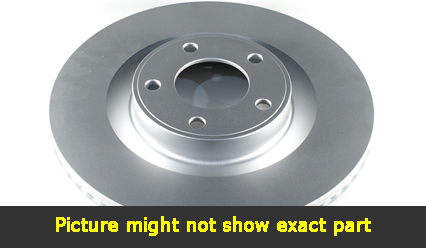

Click to EnlargeCoated Brake Rotor
$35.05 each
Raybestos: 980764
Product Number: PP31545
PRODUCT DESCRIPTION
Position: Front Coated Brake Rotor
Brake Rotor
Car Specs:
Engine: 1.6L;
| Part Label: | Brake Rotor |
| Bolt Holes: | 4 |
| Bolt Hole Diameter (mm): | 12.80 |
| Outside Diameter (mm): | 259.70 |
| Outside Diameter (in): | 10.22 |
| Inside Diameter (mm): | 163.00 |
| Inside Diameter (in): | 6.42 |
| Center Hole Diameter (mm): | 68.00 |
| Center Hole Diameter (in): | 2.68 |
| Product Height (mm): | 44.00 |
| Product Height (in): | 1.73 |
| Nominal Thickness (mm): | 22.00 |
| Nominal Thickness (in): | 0.87 |
| Discard Thickness (mm): | 20.00 |
| Discard Thickness (in): | 0.79 |
| Mounting Bolt Circle Diameter(mm): | 114.30 |
| Mounting Bolt Hole Circle Diameter (in): | 4.50 |
| Actual Weight (KG): | 5.200 |
| Actual Weight (lbs): | 11.46 |
| Part Description: | Premium Plus Brake Rotor (Coated) |
| F/R: | Front |
